Product Characteristics：

 1.Complete standard system, high interchangeability

 Compliant with ANSI/ASA B15.1, ANSI/RMA IP-20/IP-22. Two main series: Classical V-belt (A/B/C/D/E) and Narrow V-belt (3V/5V/8V). Unified groove angle (34°–38°), reference diameter, bore and keyway   dimensions; same specifications are globally interchangeable.

2.Narrow V-belt design, high transmission efficiency

3V/5V/8V feature narrow wedge grooves with high contact pressure and friction. 10%–15% higher efficiency than classical V-belts. Ideal for high-speed, high-power, compact applications (air compressors, fans, construction machinery).

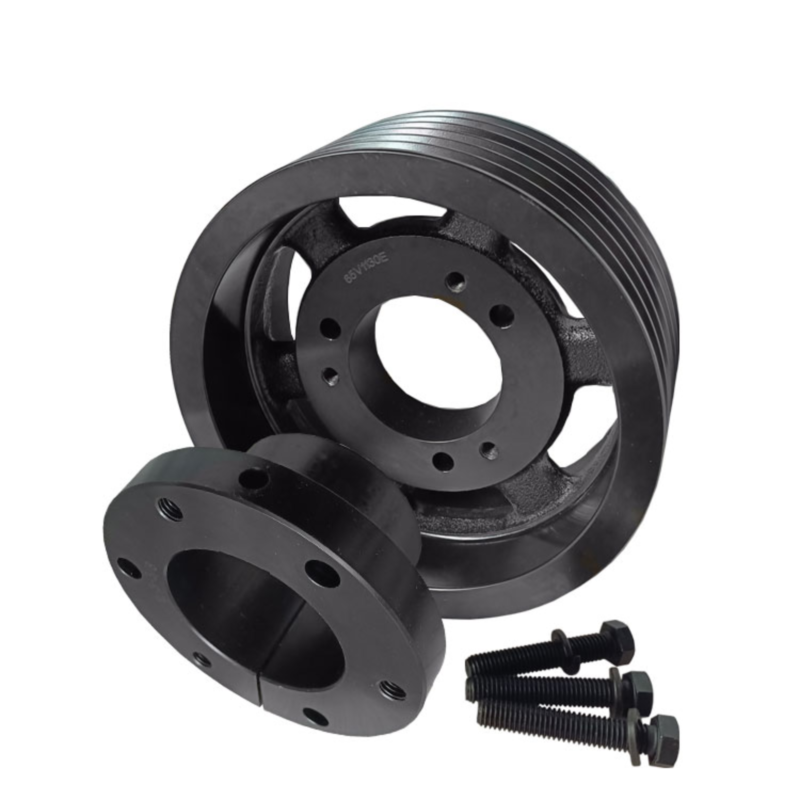

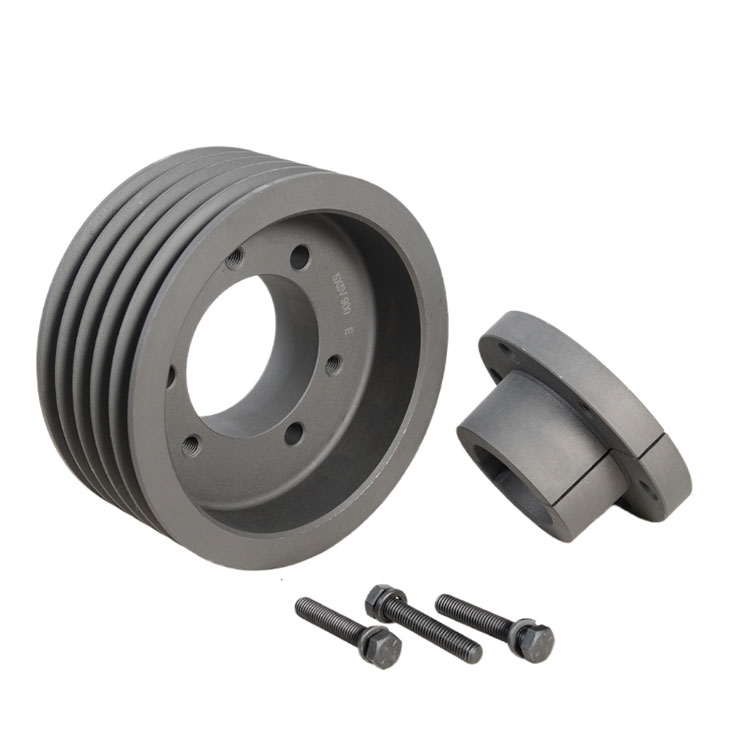

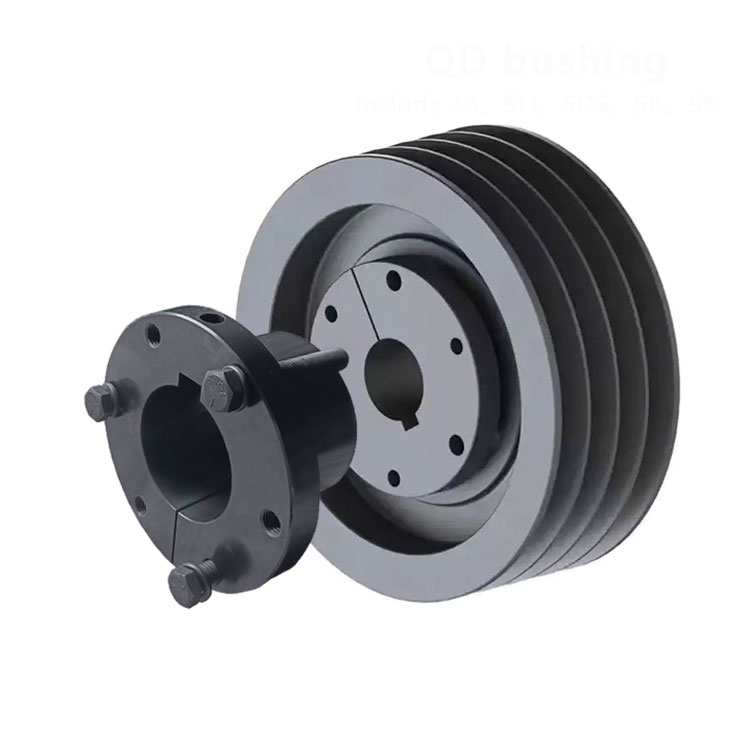

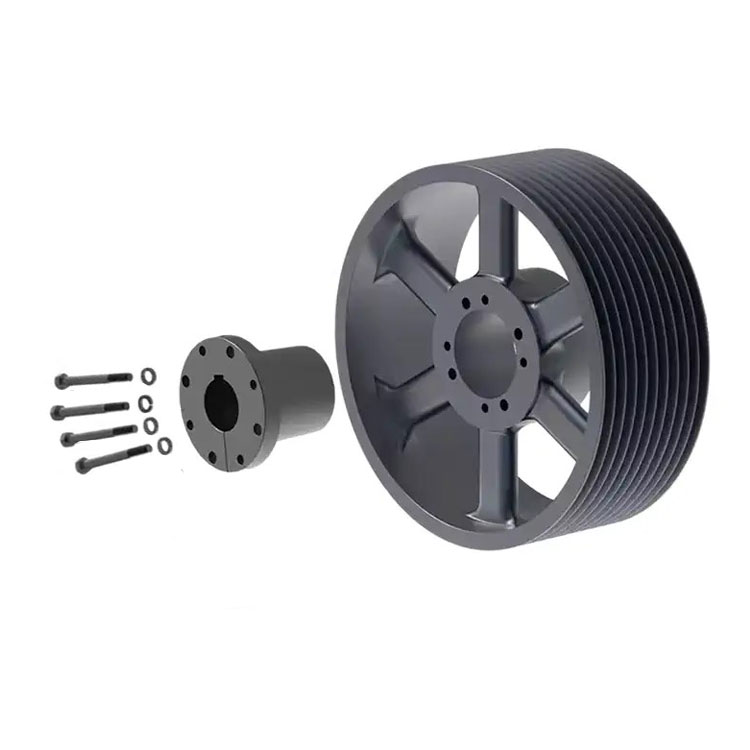

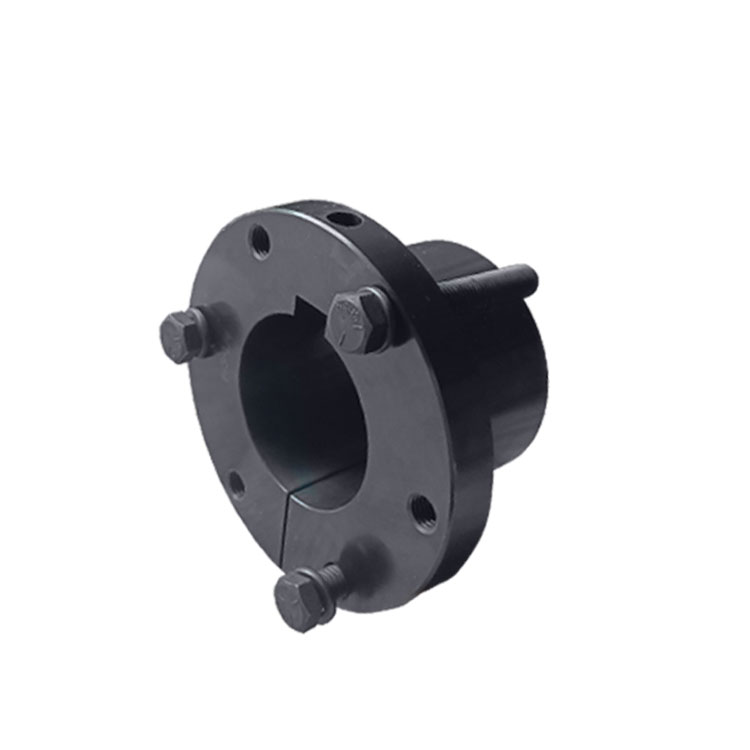

3.QD bushing system, easy installation & accurate alignment

Standard QD (Quick Disconnect) taper bushing with split flange and taper-lock design. No shaft shoulder/keyway required; shoulderless mounting, reusable, precise alignment, reducing shaft/hub damage.

4.High dynamic balance, smooth & quiet operation

Factory dynamic balance G6.3 (G2.5 for high precision); face runout ≤0.1mm. Cast iron provides inherent damping for low vibration/noise, ideal for motors, pumps, precision machinery.

5.Balanced strength & wear resistance, long service life

Thickened rim, reinforced hub, precision-machined groove surface (Ra≤3.2μm) for wear resistance, no chipping, and deformation/crack resistance. Matched with American-standard belts, belt life extended by 20%–30%.


Common Material Classification & Introduction：

1. Gray Cast Iron HT200/HT250 (Mainstream General Type)

Features: Moderate hardness, easy processing, good shock absorption and stable dimension.Advantages: High cost performance, low noise, suitable for mass production.Application: Fans, water pumps, air compressors, agricultural machinery and other general machinery.Note: Weak impact resistance; anti-rust treatment required in humid environments.

2. 45# Carbon Steel (Precision Reinforced Type)

Features: High strength and good toughness; wear resistance can be improved by quenching; high precision.Advantages: Strong load capacity, not easy to deform, suitable for medium-high speed and medium-heavy load.Application: Machine tools, printing, packaging and other industrial transmission equipment.Note: Prone to rust; surface anti-rust treatment is required.

3. Aluminum Alloy 6061/6063 (Lightweight Type)

Features: Light weight, low inertia, available for anodizing, high precision.Advantages: Stable high-speed operation, sensitive start-up, oxidation resistance.Application: Small automation equipment, office equipment, high-speed light-load occasions.Note: Not suitable for heavy load, high torque and impact working conditions.

4. Stainless Steel 304/316 (Anti-Corrosion Special Type)

Features: Rust-proof, corrosion and acid-alkali resistant, high sanitary standard.Advantages: Maintenance-free, rustproof, suitable for harsh environments.Application: Food, medical, chemical and seaside outdoor equipment.Note: High cost, only applicable for light and medium load.

5. Ductile Iron QT500/QT600 (High-Strength Heavy-Duty Type)

Features: Much higher toughness and tensile strength than ordinary cast iron, wear and impact resistant.Advantages: Large load capacity, vibration resistance, stable operation under heavy load.Application: Mining, heavy industry, heavy-duty conveying and other severe working conditions.Note: High cost; aging treatment required to prevent processing deformation.

American Standard Pulley

American Standard Pulley

American Standard Pulley

FAQ：

Q: How to solve loud noise and abnormal sound during pulley operation?
A:
  1. There are burrs and uneven wear on the groove surface; just polish it smooth.
  2. The belt is loose or aged; adjust the tension or replace the belt.
  3. The two pulleys are installed eccentrically causing heavy vibration; recalibrate the alignment.


Q: How to prevent pulleys from getting rusty after a period of use?

A:

  1. Cast iron and carbon steel pulleys should be treated with galvanizing, blackening or anti-rust oil.
  2. Avoid storing or using them in humid and rainy environments.
  3. Regularly clean surface dust and water stains for daily maintenance.
